executing AT-commands under WindowsThis is a featured page

how to execute AT-commands under Windows

In order to execute AT-commands, you first have to install drivers for your 3G device. During driver installation several specific virtual interfaces will be created, which will appear under Windows as serial COM ports or as a modem.
After drivers have been installed, you need to find out the required COM port in Windows device manager, as described below:

  1. Open the Windows device manager
    • Windows XP:
      1. Click Start, click Control Panel, click Performance and Maintenance, and then click System.
      2. On the Hardware tab, click Device Manager. Double-click the type of device you want to change.

    • Windows Vista:
      1. Click Start, click Control Panel, click System and Maintenance, and then click Device Manager.‌ If you are prompted for an administrator password or confirmation, type the password or provide confirmation.

  2. In Windows device manager you will find the required port depending on your modem's manufacturer:
    • Huawei devices:
      • expand the "Modems" section
      • right-click the item "HUAWEI Mobile Connect - 3G modem" (or similar) and select "properties"
      • click the "modem" tab
      • There you should see the "port", which is the required port.
    • Sierra Wireless devices:
      • expand the "Ports (COM & LPT)" section
      • There you should see an entry called "Sierra Wireless AT Commnd Port (UMTS) (COM ?)", where ? is the required port.
    • ZTE devices:
      • expand the "Modems" section
      • right-click the item "ZTE Proprietary USB Modem" (or similar) and select "properties"
      • click the "modem" tab
      • There you should see the "port", which is the required port.
  3. Now that you know the port, where to address your AT-commands to, you just need a terminal application by which you can send those commands to your device. The best choice is perhaps PuTTY, a universal terminal program also capable of Telnet and SSH, on which the following instructions will base. So first download putty by right-clicking this link and saving it to some folder on your harddisk, where you will find it later again (perhaps just on the desktop).

  4. After having downloaded putty.exe, make sure all other applications (especially dashboards like Huawei's Mobile Partner, Vodafone Mobile Connect, MWconn or MDMA), that may access your device are completely closed, because otherwise such applications will occupy the required COM port.

  5. If you are sure, that no other application, that may access your device, is running, start PuTTY by doubleclicking putty.exe

  6. Not the PuTTY Configuration appears:
    • select "Serial" as connection type
    • under "Serial line" enter the COM port, which you have looked up earlier (e.g. COM6)
    • click on "Open" to establish the terminal connection to your device

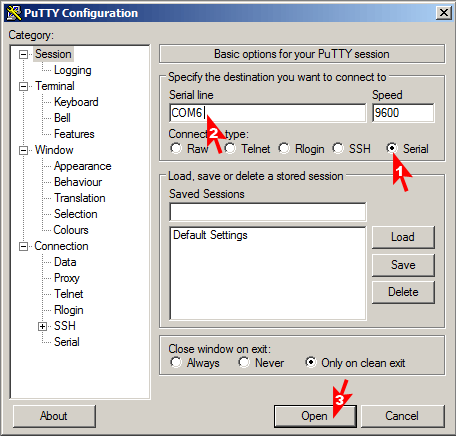

      configure putty for executing AT-commands on a serial port

  7. Now you will see the following empty black window:
    PuTTY terminal window

  8. To check if everything is working type ATZ (= resetting the device) and press [enter] and your modem should answer with "OK" (depending on if command echo is enabled or not, you might not see what you are typing, so don't wonder if the screen remains unchanged while typing).
    Afterwards try the command ATI     [enter], which will output information on your device:

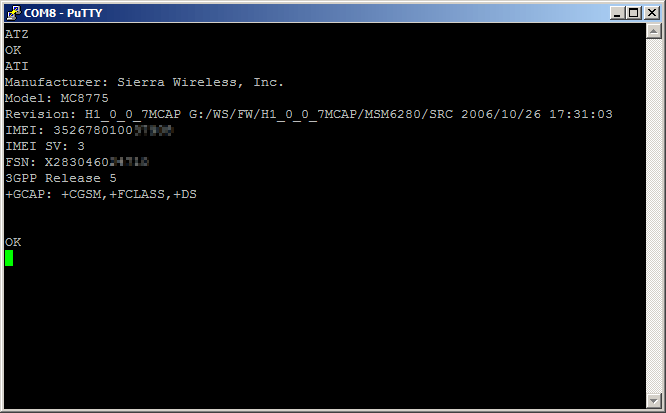

    PuTTY output after AT-command ATI
  9. If you have come so far, you are ready for entering just any AT-command you desire to.




inquisitor
inquisitor 		Latest page update: made by inquisitor , Aug 17 2009, 12:41 PM EDT (about this update About This Update inquisitor Edited by inquisitor

522 words added
3 images added

view changes
- complete history)
Keyword tags: None
More Info: links to this page
Share this Twitter Facebook MySpace Stumble Upon Delicious Add to Favorites Email

Threads for this page

Started By Thread Subject Replies Last Post
steffen-heil Sending AT commands to HUAWEI usb modems in windows modem config 1 Jan 24 2012, 9:57 AM EST by djwinch
Thread started: Dec 26 2010, 11:27 AM EST  Watch
I figured that I do NOT need to mobile parter software at all.

It suffices to send the following at commands to the usb device:

AT+CPIN=1234
AT+cgdcont=1,"IP","apn.name"

Afterwards I can connect to that network using regular windows networking calling number *99#.

Now all would be fine, if I could add these AT commands to the modem initialization on the advanced tab of the modems properties. However that input field is disabled...

Is there any way to do this?

Regards,
Steffen
25  out of 30 found this valuable. Do you?
Keyword tags: at command windows.dial up networking
Show Last Reply
Anonymous How to execute AT-commands under Windows 4 Nov 13 2010, 12:29 PM EST by inquisitor

Thread started: Feb 18 2010, 2:31 AM EST  Watch
DC-unlocker client software V1.00.0416
From this version you can use DC-Unlocker software for excecute AT-commands on your modem-dongle.
Simply you copy-paste command into white window below and just enter it (modem replies on command)

.0416 version Added: Huawei U1280, U7510s, U7519, iNQ Chat 3G, voice enable for
E156, E160, E180, E1550 and other new Huawei modems, hyperterminal functions.
Fakiro
6  out of 6 found this valuable. Do you?
Keyword tags: None
Show Last Reply
