Huawei K3715 (Vodafone)
specifications
| manufacturer: | Huawei |
| model: | K3715 |
| interface: | USB 2.0 (A plug) |
| chipset: | Qualcomm MSM7225 |
| GSM frequency bands: | 850, 900, 1800, 1900 |
| UMTS frequency bands: | 900, 2100 |
| HSDPA: | 7,2 MBit/s |
| HSUPA: | 1,45 MBit/s (ready for up to 5,76 MBit/s) |
| EDGE: | 236,8 KBit/s |
| GPRS: | 57,6 KBit/s |
| CSD: | ? |
| connector for ext. antenna: | - |
| connector type: | - |
| internal antenna diversity: | + (only for 2100 MHz) |
| voice telephony: | + |
| NAND-flashmemory: | + |
| microSD-drive: | + (up to 8GB) |
| rebranded versions: | Vodafone K3715 technically similar to Huawei E230 |
latest update
firmware:
- NEW: K3715 firmware update 11.113.03.00.00 08-July-2009 (note: will only update firmware, but not affect flash memory) + Documentation about the update: http://www.vodafone.com.au/stelprd/groups/webcontent/documents/webcontent/dev_007693.pdf
- E160G Client Software-WINMACB300D00SP01C03 (UTPS11.300.05.00.03_MACHOST11.202.08.00.03) (For Winxp&2K&Vista &MAC) (05010AAG)
(10395 KB) 27-May-2009 (note: intended for E160G, but will nevertheless flash Mobile Partner into flashmemory of K3715)
trivia
This FCC approval document filed for the K3715 has an error on page 6 under 2.1.2, where it mentions the "Huawei E230". Presumably the document for the E230 was used as template for the K3715's approval, which may mean they are more or less identical. At least both share the same chipset (Qualcomm MSM6280).

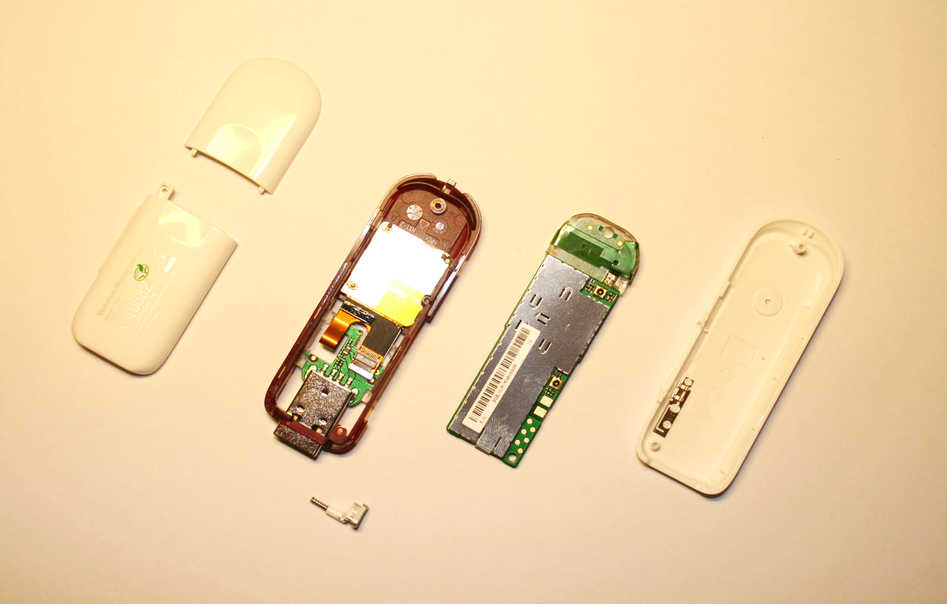

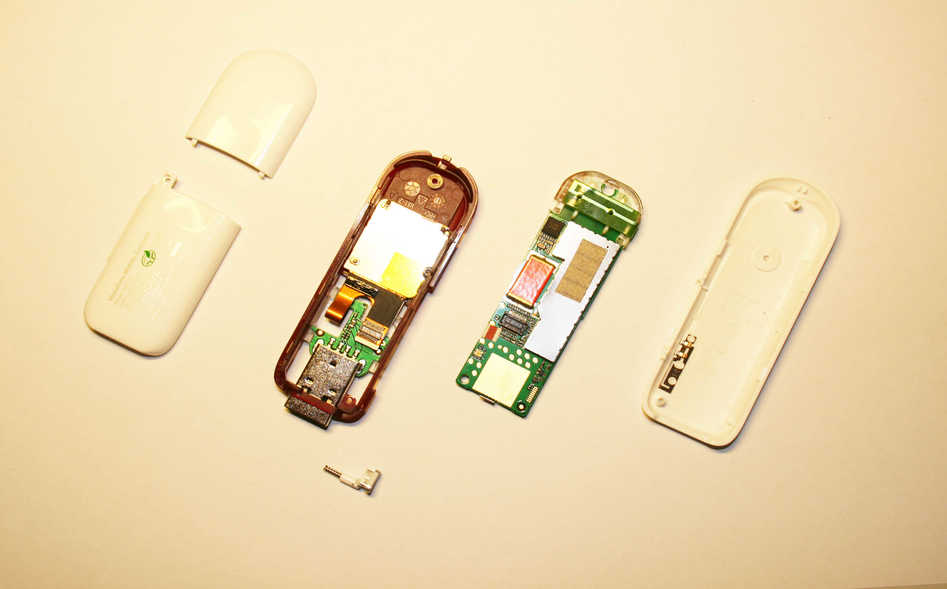

dismantled
(larger versions available in the gallery - click "Photos" above)

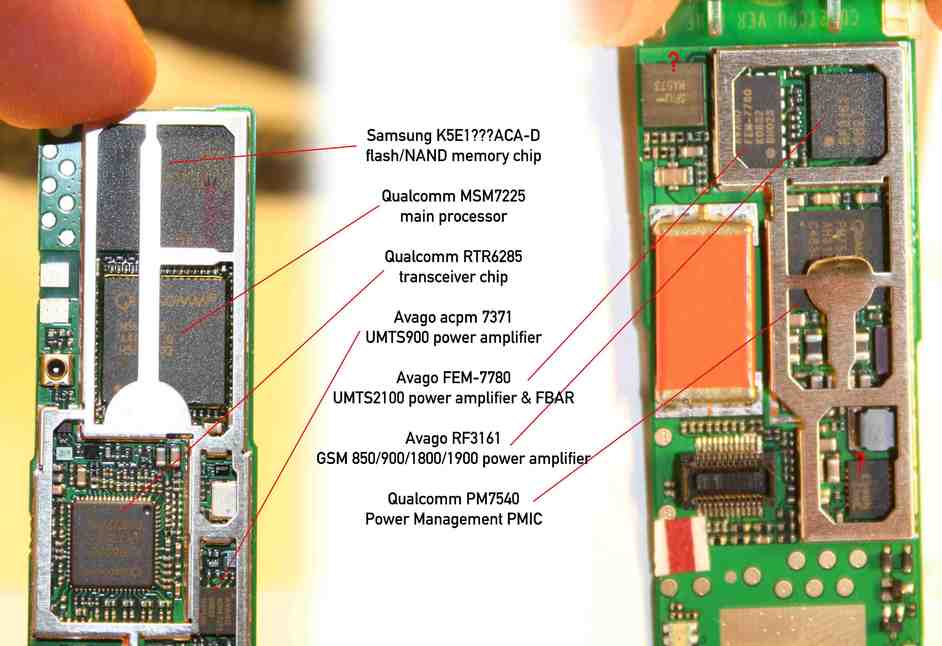

PCB layout
inquisitor |
Latest page update: made by inquisitor
, Aug 3 2010, 3:45 PM EDT
(about this update
About This Update
Rename
- inquisitor
No content added or deleted. - complete history) |
|
