Huawei E1750, E1750C, E1752, E1752CThis is a featured page


manufacturer: Huawei Huawei Huawei Huawei
model: E1750 E1750C E1752 E1752C
interface: USB 2.0 (A plug) USB 2.0 (A plug) USB 2.0 (A plug) USB 2.0 (A plug)
GSM frequency bands: 850, 900, 1800, 1900 850, 900, 1800, 1900 850, 900, 1800, 1900 850, 900, 1800, 1900
UMTS frequency bands: 2100 850, 1900, 2100 1900, 2100 2100 / 2100, 900*
HSDPA: 7.2 Mbps 7.2 Mbps 7.2 Mbps 7.2 Mbps
HSUPA: 5.76 Mbps 5.76 Mbps 5.76 Mbps 5.76 Mbps
EDGE: 236,8 KBit/s 236,8 KBit/s 236,8 KBit/s 236,8 KBit/s
GPRS: 57,6 KBit//s 57,6 KBit//s 57,6 KBit//s 57,6 KBit//s
CSD: ? ? ? ?
connector for ext. antenna: internal internal internal internal
connector type: MS-156 hirose MS-156 hirose MS-156 hirose MS-156 hirose
internal antenna diversity: + + + +
voice telephony: ? ? ? ?
NAND-flashmemory: + (96 MB) + + +
microSD-drive: + + + +
hardware version: CD6ATCPU

CD6ATCPU
rebranded versions:Digi RDS&RCS (RO)
BlueConnect(PL)
T-Mobile		Play Online (PL)
Alice UMTS-Stick 4 (DE)

*) UMTS 900 is supported or not, depending on the source of delivery


Huawei E1750
Huawei E1750C
Huawei E1750/E1752
Huawei E1750C/E1752C

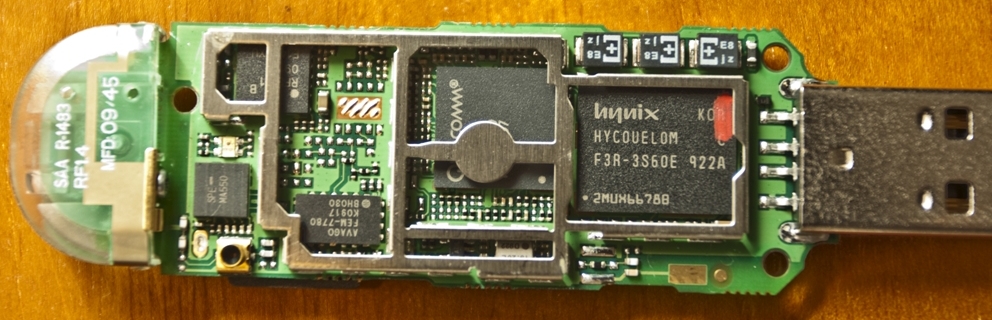

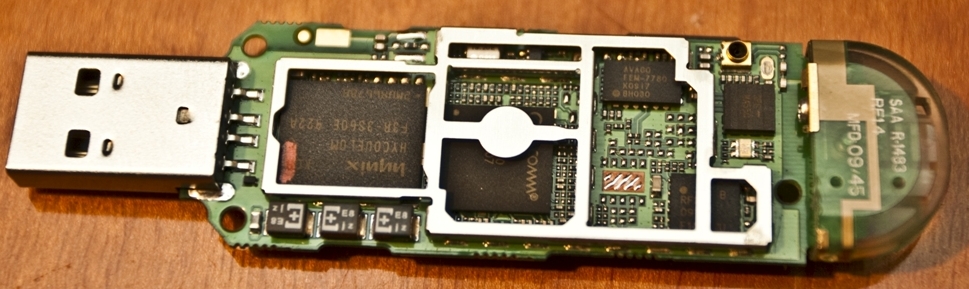

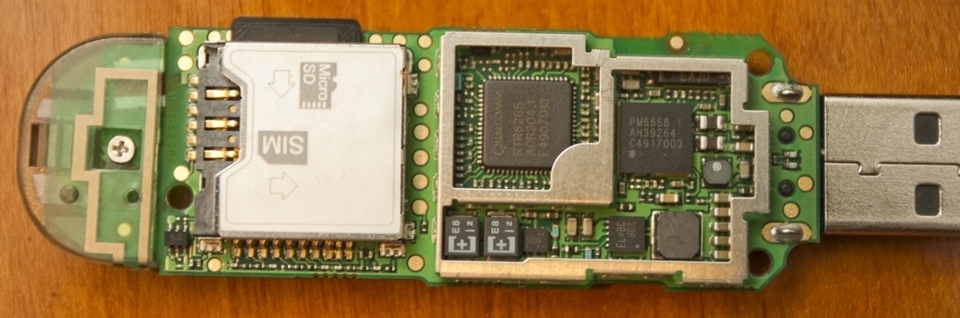

inside huawei e1750inside huawi e1750inside huawei e1750


debranding
persistent (= irreversible) method
Just download and run the following dashboard update (allthough designed for the E1550 it's fully compatible with the E1750):
http://www.huaweidevice.com/worldwide/downLoadDetail.do?method=downloadFile&flag=1&fileName=32158&attachmentName=E1550-Client+Software+WINMACB300D00SP01C03+(UTPS11.300.13.00.03_MAC11.301.06.00.03)+(For+WINXP%262K%26Vista+%26MAC)+(05019427).zip


volatile (= reversible) method

If you don't want to change the flashmemory of your E1750 permanently, you may also use the following method, by which the flashmemory will just be disabled and instead a microSD-card will be used to store an unbranded generic version of Mobile Partner. In the end you'll have the same result like with the persistent method, but it will be reversible (see below "rebranding"):

  1. Insert a microSD-card into your E1750 and format it.

  2. Download this modified version of Mobile Partner (originally UTPS11.300.05.00.03) - [mirror 1] [mirror 2] [mirror 3] [mirror 4] [mirror 5]

  3. Extract the downloaded rar file into the root of the microSD card.

  4. Run the AT-command: AT^U2DIAG=256 (how to run AT-commands) - this will disable the flashmemory, which will be replaced by the microSD-card, so after plugging in the modem from now on only the microSD-card will show up and the setup of the modified "Mobile Partner" will be run automatically.
    Sometimes AT-commands will result in an "ERROR" - in this case keep reentering the AT-command until "OK" is being returned.
  5. Now you need to safely remove the flashmemory component of your 3G modem:
    • Click the "safely remove hardware" icon in the taskbar:
      Windows XP: safely remove hardwareHuawei E1762 - 3G modem wiki

    • Eject the flashmemory, which should appear as "CD-Drive (X:) Mobile Partner" (or similar designation)
  6. Finally unplug and replug the 3G modem. Now only the microSD-card should appear as new drive and the modded version of Mobile Partner should be run automatically. Of course the microSD-card must remain in your E1750 in order to have installation files for Mobile Partner at hand.


rebranding (not testet)

In order to get back the flashmemory follow these steps:

  1. Remove the microSD-card or format it.

  2. Run the AT-command: AT^U2DIAG=268 (how to run AT-commands) - this will reenable the flashmemory, which was replaced by the microSD-card.
    Sometimes AT-commands will result in an "ERROR" - in this case keep reentering the AT-command until "OK" is being returned.
  3. Now you need to safely remove the flashmemory component of your 3G modem:
    • Click the "safely remove hardware" icon in the taskbar:
      Windows XP: safely remove hardwareHuawei E1762 - 3G modem wiki

    • Eject the flashmemory, which should appear as "Huawei 3G" (or similar designation)
  4. Finally unplug and replug the 3G modem. Now the original flashmemory and, if a microSD-card is present, also the microSD-drive will appear as drives.


firmware
E1752_Update_11.126.13.00.00.B418 (From Cell C, South Africa)


Chris_M
Chris_M 		Latest page update: made by Chris_M , Jul 2 2012, 2:15 AM EDT (about this update About This Update Chris_M Edited by Chris_M

3 words deleted

view changes
- complete history)
Keyword tags: None
More Info: links to this page
Share this Twitter Facebook MySpace Stumble Upon Delicious Add to Favorites Email

Threads for this page

Started By Thread Subject Replies Last Post
hanu_blr 1752 2 Dec 25 2011, 11:25 PM EST by sumersinghwal
Thread started: Dec 4 2010, 4:01 AM EST  Watch
Googling 1752, shows its a dual band UMTS, not tri. 1756 is shown as Triband.
15  out of 17 found this valuable. Do you?
Keyword tags: None
Show Last Reply
hanu_blr antenna port to connect external antenna ? 1 Dec 6 2010, 7:31 AM EST by steverow
Thread started: Oct 15 2010, 10:18 PM EDT  Watch
Does this support ?, on the net i saw ext antenna for this, but i dont see any ext port crc9 on the device.
As per the 3rd image as above, next MA550 chip, there looks some kinda copper port, is that antenna port ?

or is there any url, who has tried connecting an ext antenna on 1750/1752.

-hanu
3  out of 3 found this valuable. Do you?
Keyword tags: None
Show Last Reply
weon voice telephony: ? 1 Dec 4 2010, 4:06 AM EST by hanu_blr
Thread started: Sep 23 2010, 8:23 AM EDT  Watch
At least one person has reported this modem (huawei e1752) to be able to receive and make calls (http://dc-unlocker.com/forum/showthread.php?p=12252&posted=1#post12252).
I have enabled voice feature (dissabled by default) and I can make calls but can't receive them (caller gets "subscriber not available" message).
I wonder if this depends on whether the operator, firmware or dashboard. My firmware version is the same as the one used by that person who has it working fine. My dashboard is updated and with voice (11.302.09.01.539, plugins version 1.01)
So...anyone had this problem and knows how to solve it?
4  out of 4 found this valuable. Do you?
Keyword tags: None
Show Last Reply
Showing 3 of 4 threads for this page - view all
