Huawei K3565 (Vodafone)
| manufacturer: | Huawei |
| model: | K3565 |
| interface: | USB 2.0 (A plug) |
| GSM frequency bands: | 850, 900, 1800, 1900 |
| UMTS frequency bands: | 900, 2100 |
| HSDPA: | 3,6 MBit/s |
| HSUPA: | 384 kBit/s |
| EDGE: | 236,8 KBit/s |
| GPRS: | 57,6 KBit//s |
| connector for ext. antenna: | + (covered by housing) |
| connector type: | CRC9 |
| internal antenna diversity: | + |
| voice telephony: | + (enabled by default) |
| NAND-flashmemory: | + (80 MB) |
| microSD-drive: | + (up to 8GB) |
| hardware versions: | CD25TCPU |
| rebranded versions: | Vodafone K3565-H |

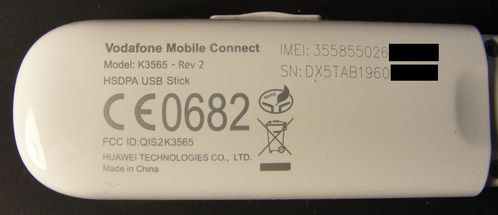

- K3565-H which is a Huawei E160X (Rev.2 models carry the hardware ID "K3565 - Rev.2" printed on the back of the device)
- K3565-Z which is produced by ZTE
Unlocking
unlock codes are available free of charge at http://a-zgsm.com/huawei.php
To unlock your device, put in a third-party SIM card, start Mobile Partner and after entering the PIN code, the unlock code will be required.
Debranding
see debranding Huawei modems
Disable/revive flashdrive
The integrated flashdrive of the E160 can be disabled by executing the following AT-command:
at^u2diag=256
If your modem answers ERROR, instead you can use command:
at^u2diag=0
Unfortunately this command will also disable the microSD-drive.
To revive the flashdrive and the microSD-drive execute:
at^u2diag=255
More at page Huawei AT-commands
Exposing the antenna connector on the K3565
Guide: http://www.instructables.com/id/Huawei-E160X-Vodafone-K3565-3G-dongle-external-a/
Weblinks
product page of manufacturer:
support page of manufacturer:
periskop |
Latest page update: made by periskop
, Nov 2 2014, 9:01 AM EST
(about this update
About This Update
Edited by periskop
2 words added 3 words deleted view changes - complete history) |
|
Keyword tags:
huawei
Huawei K5005 LTE Modem
K3565
modem
modem k3565-rev 2
vodafone
More Info: links to this page
|
Share this
| Started By | Thread Subject | Replies | Last Post | ||
|---|---|---|---|---|---|
| yance | Vodafone K3565 (Huawei) bricked :-( | 0 | Apr 15 2012, 12:07 PM EDT by yance | ||
|
Thread started: Apr 15 2012, 12:07 PM EDT
Watch
Hi,
Not sure if anyone can suggest anything to help but here goes: I found this modem lying around with an old, now expired vodafone SIM. After some googling I thought I should be able to unlock it and enable voice. Unlock worked fine and I've had it going on a cpl of laptops. I updated the firmware to the latest version (11.609.10.00.00.B716) and all was working OK. I then tried to enable voice with the AT command AT^CVOICE=0. I then also issued another cpl of commands (because I copied and pasted the wrong one and also because I didn't know what I was doing) which were AT^U2DIAG=255 and AT^U2DIAG=267 Anyway, following a reboot the result is it's no longer detected as a modem. (Same in 2 other PCs) and hence I can't do anything including issuing other AT commands that may reverse it (because there's no device to point them at). I appreciate it serves me right but I wondered if there's anything I can attempt before I throw it out? Cheers for any help Steve
